Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency

  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
Lugar de origen Porcelana
Nombre de la marca Trancar Industries
Certificación CE/ISO
Número de modelo TCM-D
Cantidad de orden mínima 1 juego
Precio USD 9000-5000 Dollar per set
Detalles de empaquetado Caja de madera contrachapada/Cajas de cartón de diseño personalizado
Tiempo de entrega 35 días de trabajo
Condiciones de pago LC, D/A, D/P, T/T, Unión Occidental
Capacidad de la fuente 20 juegos por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Nombre del producto Pulidora semiautomática de cabezales de platos Dimensión Con un tamaño de 3500x1600x3050 mm
Peso 2500 kg Voltaje 380V 400V 415V, etc. 50Hz/60Hz y otros
Opción de color Azul/amarillo/rojo/gris Uso Limpieza de la superficie del acero, eliminación de óxido, obtención de la superficie del espejo
Condición 100% nuevo Sistema de control Semi-automático/CNC
Eficacia de pulido 8-12 m2 por hora Garantía 18 meses
Servicio postventa Apoyo técnico por video/Ayuda en línea/Ingenieros en el extranjero Proporcionar ODM & OEM
Resaltar

3500x1600x3050mm Dished End Polishing Machine

,

2500 kg Semi-automatic Polishing Machine

,

8-12m2 per Hour Tank Head Polishing Machine
Deja un mensaje
Descripción de producto
Semi-automatic Polishing Machine for Dish Head End
TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.

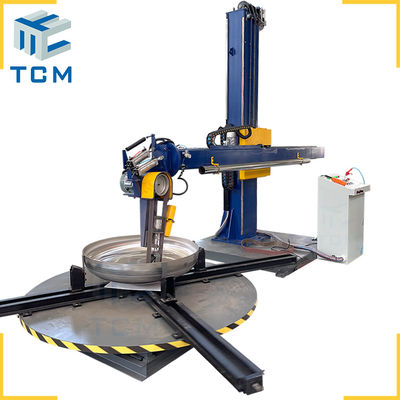

Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 0
Technical Specifications
Parameter Details
Available Polishing Workpiece Size Inside & outside diameter: 450~5000mm
Turntable Max Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension Machine: 3500×1600×3080mm
Column: 300×400×8mm
Beam: 150×200×6mm
Input Total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Packaging and Delivery
  • Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements

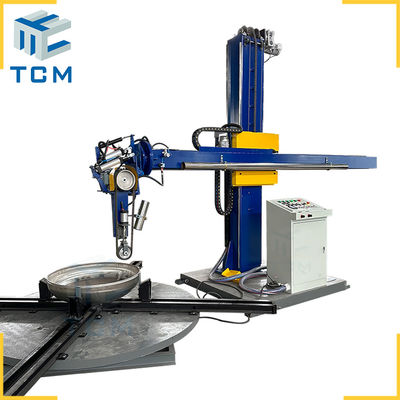

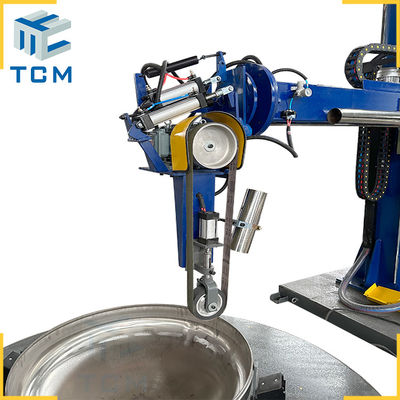

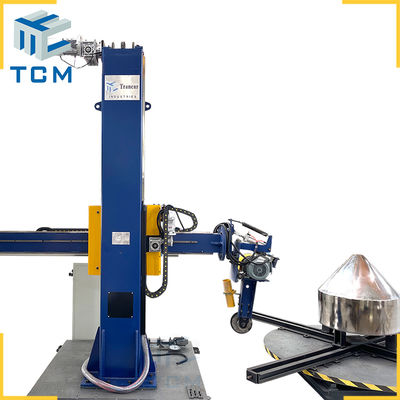

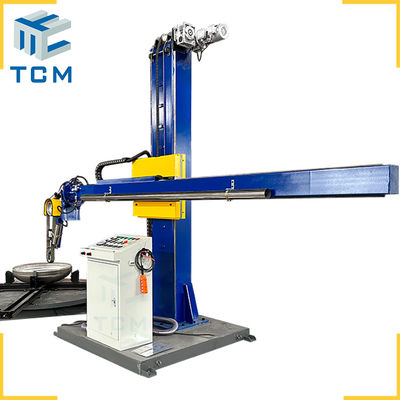

Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 1 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 2 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 3 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 4
Trancar Automatic Polishing Machine in Client's Workshop
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 5
Contact Us
For any other queries about our polishing machines, please feel free to contact us. We will respond within 12 hours.
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 6
