Steel dish and shell automatic buffing machine TCM-YT with China factory price

  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
  • Steel dish and shell automatic buffing machine TCM-YT with China factory price
Lugar de origen Porcelana
Nombre de la marca Trancar Industries
Certificación CE/ISO
Número de modelo TCM-T
Cantidad de orden mínima 1 juego
Precio USD 9000-5000 Dollar per set
Detalles de empaquetado Caja de madera contrachapada de diseño personalizado
Tiempo de entrega 35 días de trabajo
Condiciones de pago LC, D/A, D/P, T/T, Unión Occidental
Capacidad de la fuente 20 juegos por mes
Datos del producto
Nombre del producto Pulidora automática de platos y carcasas de acero Dimensión Las dimensiones de las piezas de la cubierta son las siguientes:
Peso 2500 kg Voltaje 380 V 400 V 415 V, etc.
Opción de color Azul/amarillo/rojo/gris, etc. Uso Limpieza de la superficie del tanque de acero, eliminación de la oxidación, mejora de la superficie
Condición 100% nuevo sistema de control Semiautomático/CNC Automatización completa/PLC, etc.
Eficacia de pulido 8-15 m2 por hora Garantía 18 meses
Servicio posventa Apoyo técnico por video/Ayuda en línea/Ingenieros en el extranjero Proporciona ODM & OEM
Resaltar

18 Month Warranty Tank Polishing Machine

,

8-15m2 per hour Automatic Buffing Machine

,

Semi-automatic/CNC Full automation/PLC Steel Tank Polisher
Deja un mensaje
Descripción de producto

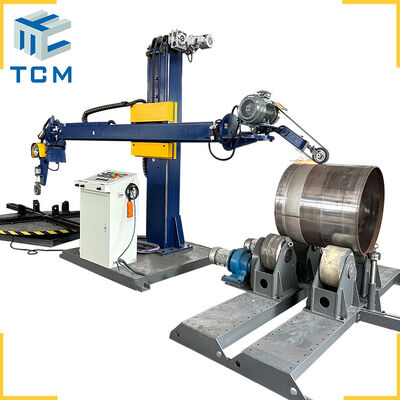

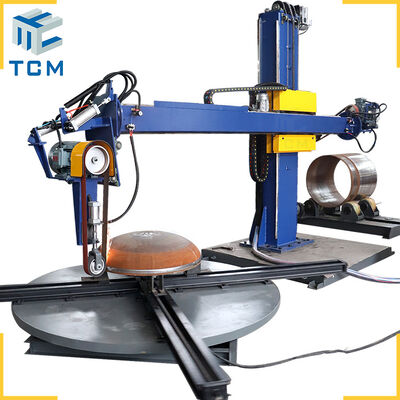

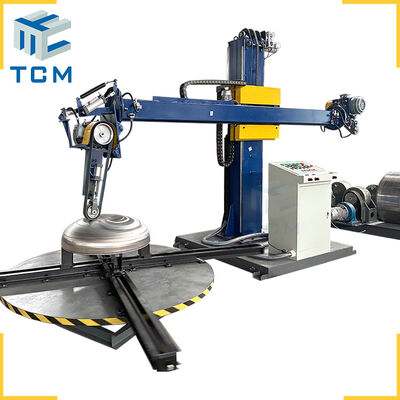

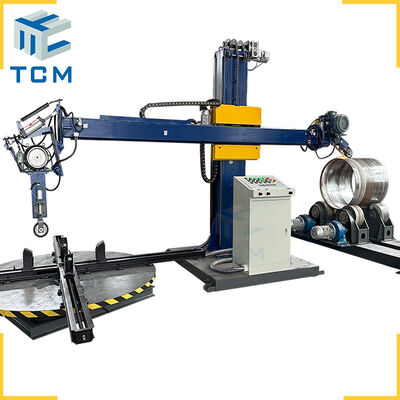

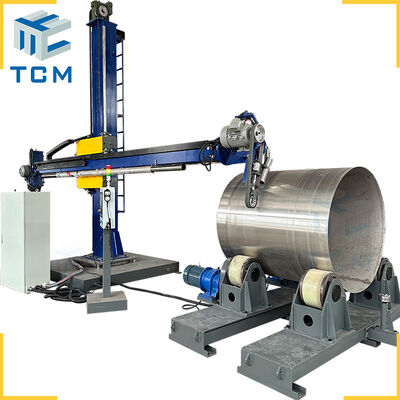

Steel dish and shell automatic buffing machine TCM-YT with China factory price

Stainless steel tank surface automatic polishing grinding buffing machine with semi-autoamtion control system.


Trancar Industries TCM-YT column and boom manipulator stainless steel tank shell and dish automatic buffing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.


This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.

It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.


TCM-YT series steel dish and shell automatic buffing machine

Normal configuration(customer design acceptable)

Steel metal tank size

Outside diameter

400~5000mm / 7000 mm


Inside diameter

400~5000mm / 7000 mm


Length

<=5000mm / 8000 mm


Tank Roller Max.Loading capacity

1 Ton / 2 Ton / 5 Ton /10 Ton or customization

(13T,15T,20T)


Dish end/Tank Head Size

Inside & outer Diameter

450~5000mm / 6000 mm


Turntable Max.loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.


Polishing Precision

Surface roughness(Ra)

<=0.25μm


Production Efficiency

Polishing working speed

6~12 m2/h


Total Dimension

Machine Dimension

4500*1600*3080mm


Column Dimension

300x400x8 mm


Beam Dimension

150x200x6 mm


Input total Power

/

15 kw


Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization


Machine Weight

/

3550kg


Color

Grey/Green/Blue/Red/Yellow Custom design


Suitable Polishing Materials

Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc)


Trancar Industries Inox cylindrical tank shell automatic polishing delivery & package:

Steel dish and shell automatic buffing machine TCM-YT with China factory price 0

Steel dish and shell automatic buffing machine TCM-YT with China factory price 1

Steel dish and shell automatic buffing machine TCM-YT with China factory price 2


Packaging and delivery:

1,Plywood case+PE Film+ Carton protection.
2,or based on your order requirements.


Contact Trancar Industries:

Steel dish and shell automatic buffing machine TCM-YT with China factory price 3
